DESCRIPTION

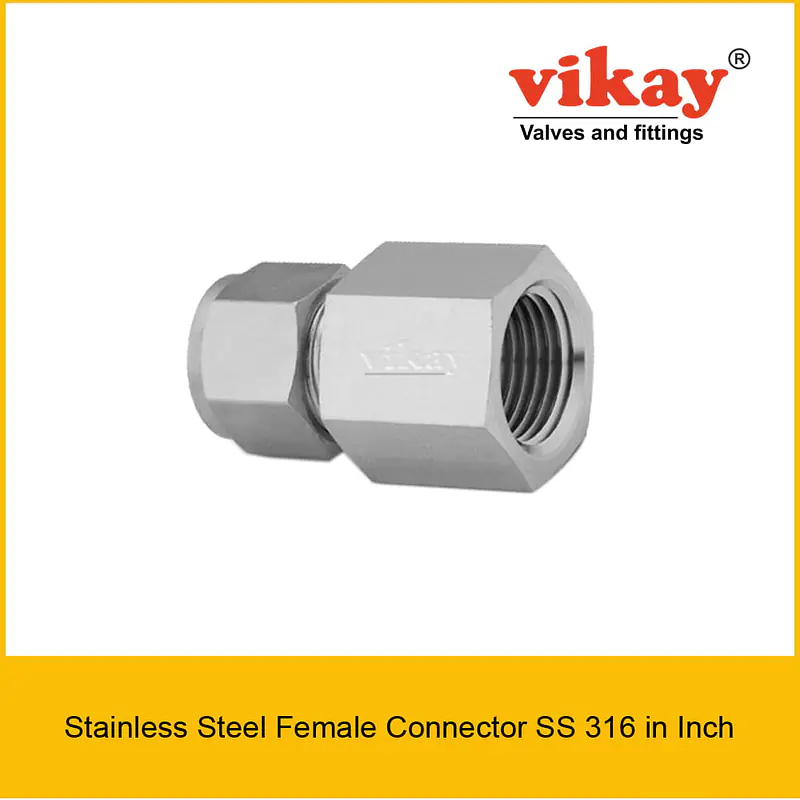

Female Connector SS 316 Inch - Stainless Steel Compression Tube Fittings
Vikay Mining Equipments is a global supplier of Female Connector SS 316 Inch - Stainless Steel Double Ferrule Compression Tube Fittings from India.
| No. | TUBE | NPT | Ref. Part No. |
| OD | Female Pipe | ||
| T | Size P | SS 316 | |
| FCD6 | |||
| 1 | 1/8 x 1/8 | 2FCD2Nx6 | |
| 2 | 1/8 x 1/4 | 2FCD4Nx6 | |
| 3 | 1/4 x 1/8 | 4FCD2Nx6 | |
| 4 | 1/4 x 1/4 | 4FCD4Nx6 | |
| 5 | 1/4 x 3/8 | 4FCD6Nx6 | |
| 6 | 1/4 x ½ | 4FCD8Nx6 | |
| 7 | 5/16 x 1/8 | 5FCD2Nx6 | |
| 8 | 5/16 x 1/4 | 5FCD4Nx6 | |
| 9 | 5/16 x 3/8 | 5FCD6Nx6 | |
| 10 | 3/8 x 1/8 | 6FCD2Nx6 | |
| 11 | 3/8 x 1/4 | 6FCD4Nx6 | |
| 12 | 3/8 x 3/8 | 6FCD6Nx6 | |
| 13 | 3/8 x ½ | 6FCD8Nx6 | |
| 14 | ½ x 1/4 | 8FCD4Nx6 | |
| 15 | ½ x 3/8 | 8FCD6Nx6 | |
| 16 | ½ x ½ | 8FCD8Nx6 | |
| 17 | ½ x 3/4 | 8FCD12Nx6 | |
| 18 | 5/8 x ½ | 10FCD8Nx6 | |
| 19 | 5/8 x 3/4 | 10FCD12Nx6 | |
| 20 | 3/4 x ½ | 12FCD8Nx6 | |
| 21 | 3/4 x 3/4 | 12FCD12Nx6 | |
| 22 | 1 x 3/4 | 16FCD12Nx6 | |
| 23 | 1 x 1 | 16FCD16Nx6 | |
