Female Connector SS 304 mm - Stainless Steel Compression Tube Fittings
Regular price
₹0.00
DESCRIPTION

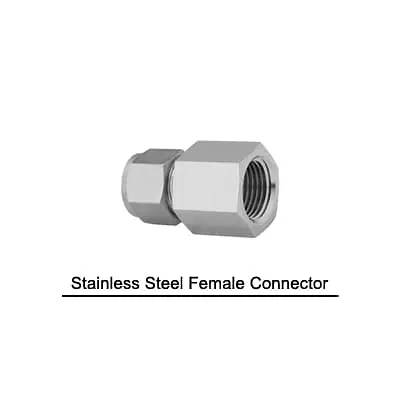

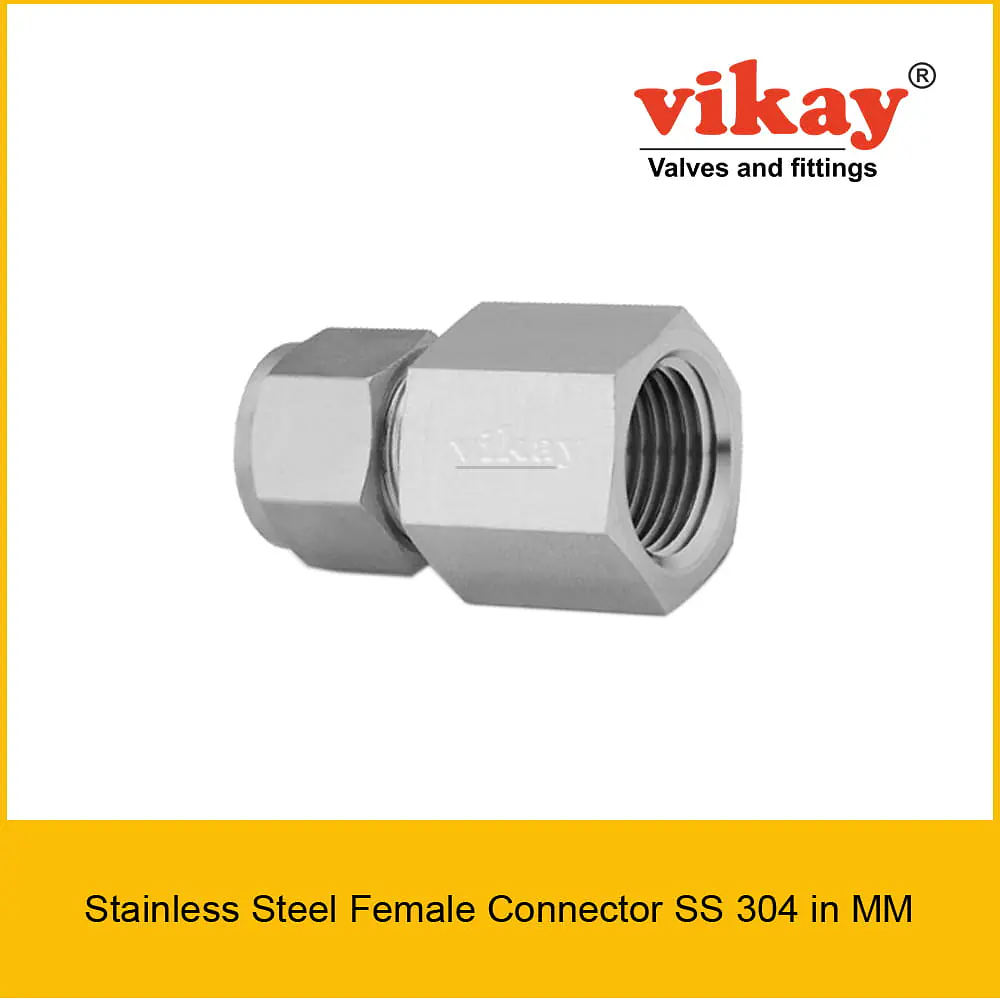

Female Connector SS 304 mm - Stainless Steel Compression Tube Fittings
Vikay Mining Equipments is a global supplier of Female Connector SS 304 mm - Stainless Steel Double Ferrule Compression Tube Fittings from India.
| No. | TUBE | NPT | Ref. Part No. |
| OD | Female Pipe | ||
| SS 304 | |||
| T | Size P | ||
| (mm) | (Inch) | MFCD4 | |
| 1 | 6 x 1/8 | 6MFCD2Nx4 | |
| 2 | 6 x 1/4 | 6MFCD4Nx4 | |
| 3 | 6 x 3/8 | 6MFCD6Nx4 | |
| 4 | 6 x ½ | 6MFCD8Nx4 | |
| 5 | 8 x 1/8 | 8MFCD2Nx4 | |
| 6 | 8 x 1/4 | 8MFCD4Nx4 | |
| 7 | 8 x 3/8 | 8MFCD6Nx4 | |
| 8 | 8 x ½ | 8MFCD8Nx4 | |
| 9 | 10 x 1/4 | 10MFCD4Nx4 | |
| 10 | 10 x 3/8 | 10MFCD6Nx4 | |
| 11 | 10 x ½ | 10MFCD8Nx4 | |
| 12 | 12 x 1/4 | 12MFCD4Nx4 | |
| 13 | 12 x 3/8 | 12MFCD6Nx4 | |
| 14 | 12 x ½ | 12MFCD8Nx4 | |
| 15 | 15 x ½ | 15MFCD8Nx4 | |
| 16 | 16 x 3/8 | 16MFCD6Nx4 | |
| 17 | 16 x ½ | 16MFCD8Nx4 | |
| 18 | 20 x ½ | 20MFCD8Nx4 | |
| 19 | 20 x 3/4 | 20MFCD12Nx4 | |
| 20 | 22 x 3/4 | 22MFCD12Nx4 | |
| 21 | 22 x 1 | 22MFCD16Nx4 | |
| 22 | 25 x 3/4 | 25MFCD12Nx4 | |
| 23 | 25 x 1 | 25MFCD16Nx4 | |
